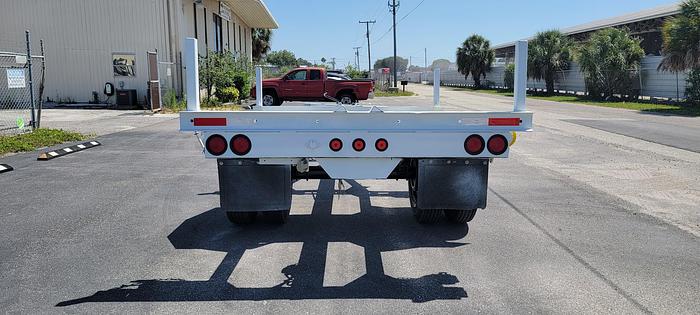

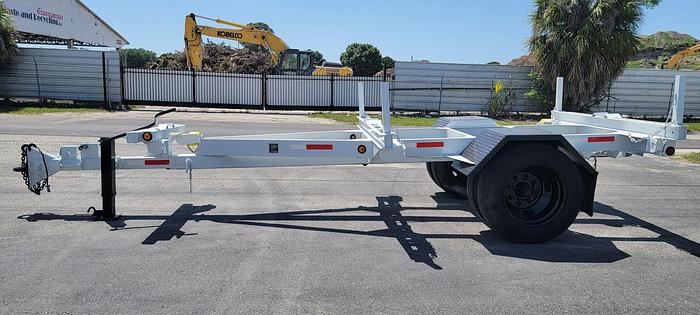

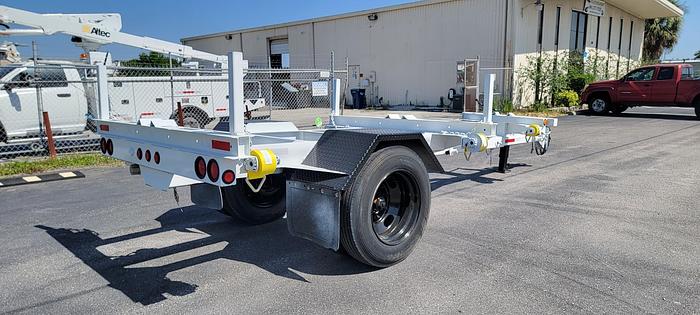

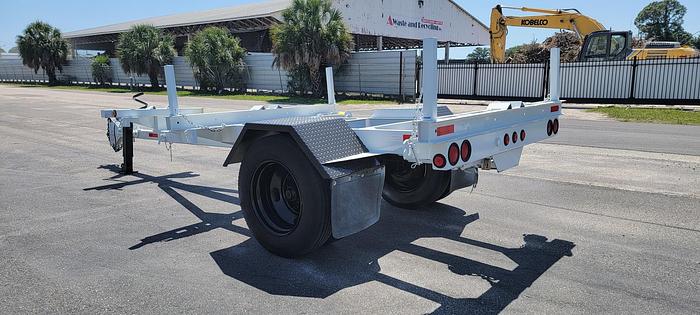

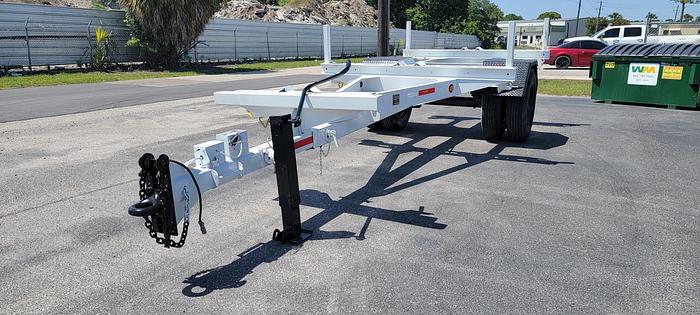

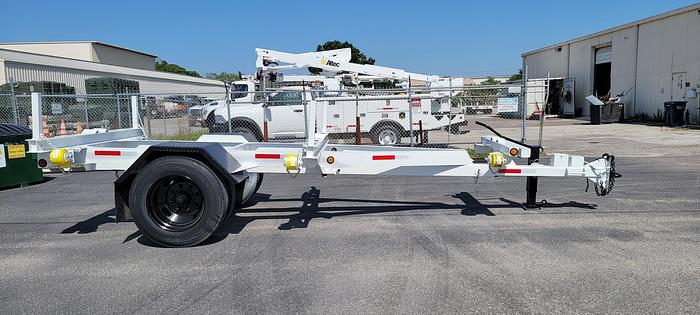

Butler BPHD-1500 SA EB Extendable Pole Trailer - 02068
Sold
Butler BPHD-1500 SA EB Extendable Pole Trailer - 02068
$12,900 (USD)
Location:Sarasota, FL
Description
Max pole length carrying recommendation. 60ft pole for a 32' long trailer The pole trailer length required for extendible Tongue Pole and Combination Trailers can be calculated by the formula: (TD / (TD + BD)) * 1.20 * PL + UB + 1 = Pole Trailer Length Required Where: TD = Top Diameter (IN) BD = Bottom Diameter (IN) PL = Pole Length (FT) UB = Undercarriage to Rear Bolster (FT) UB = 4' For Standard Pole Trailers UB = 5' For Model 1521-PRC Combination Trailers
Specifications
| Year: | 2005 |
| Manufacturer: | Butler |
| Model: | 1500 |
| Condition: | Used |
| Serial Number: | 1BUP2510551002068 |
| Stock Number: | 02068 |
| GVWR: | 15000 lb |
| Brakes: | Electric |
| Overall retracted: | 24' |
| Overall extended: | 32' |
| Chassis year: | 2004 |
| Unladen weight: | 2800 lb |

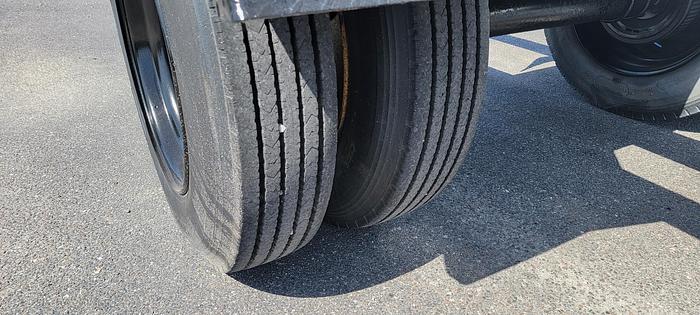

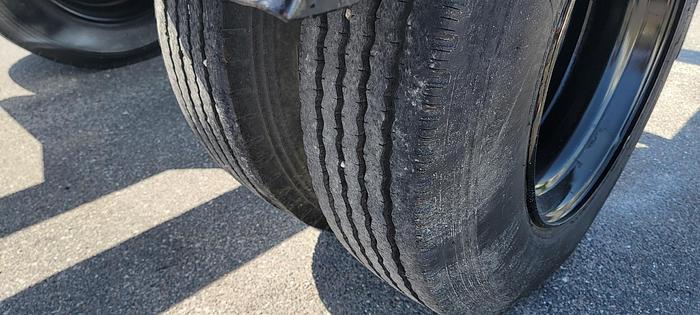

| Tires: | 9R22.5 F |
| Rims: | 6.7 x 22.5 |
| Springs: | Multi-Leaf, Slipper Type |
| Paint: | White |
| Overall width: | 96" |
| Cargo bed: | Yes |

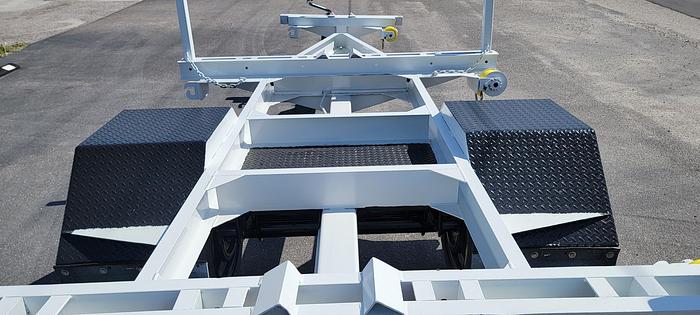

| Frame: | Steel |
| Bolsters: | 3 |

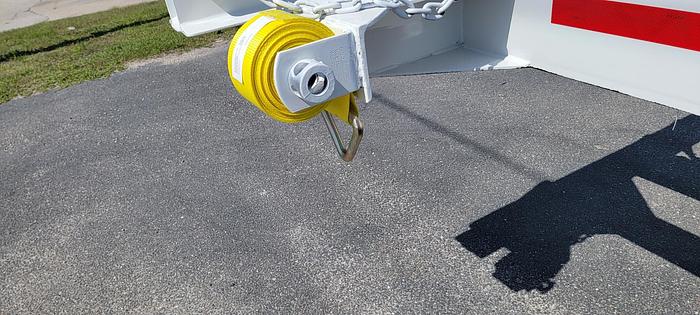

| Pole binders: | 3 |

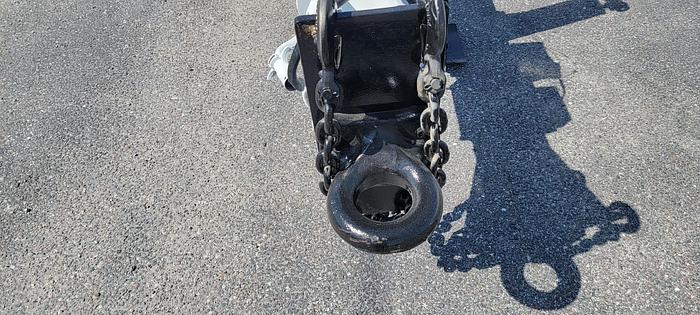

| Hitch: | Pintle Eye |
| Telescoping tongue: | Yes |
| Tongue jack: | 10000 lb |
| Electrical stretch cable: | 7 pin round connector |
